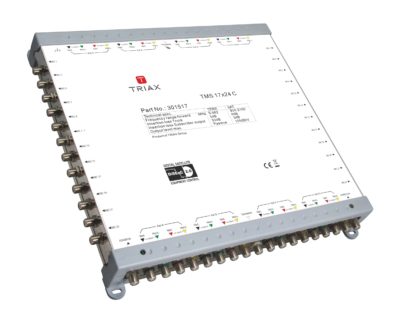

Triax MultiSwitch 17 inputs – 24 outputs Cascade

MODEL NO: 301517

• Max. output level SAT @ -35 dB IMD3 100 dBµV
• Max. output level TER @ -60dB IMD3 passive dBµV
• Frequency range TER 5 – 862 MHz
• Frequency range SAT 950-2150 MHz
• Gain – TER -33.0 dB
• Temperature – operating -20…55 °C
• Number of inputs 17
• Number of trunk inputs 16 SAT, 1 TER
• Number of trunk outputs 16 SAT, 1 TER
• Subscriber outputs 24
